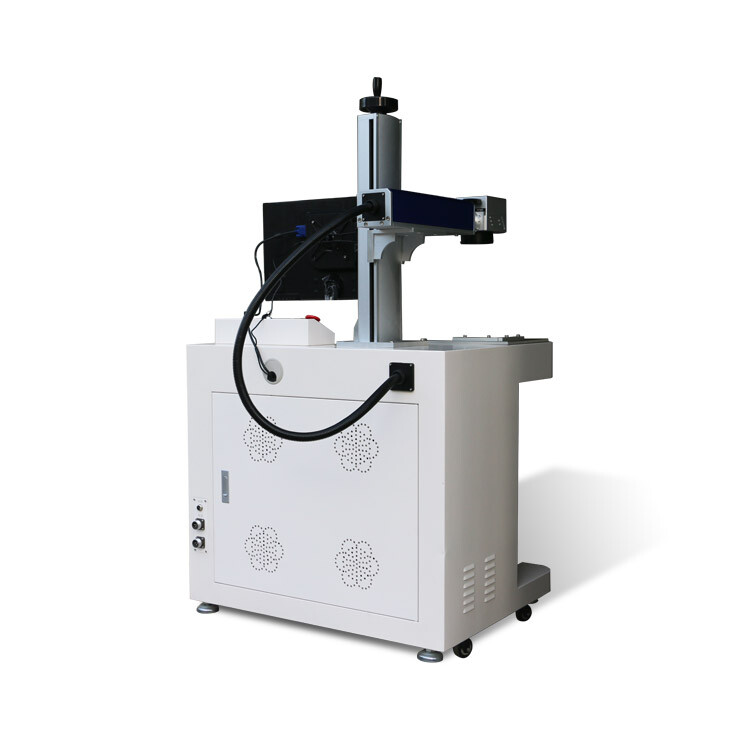

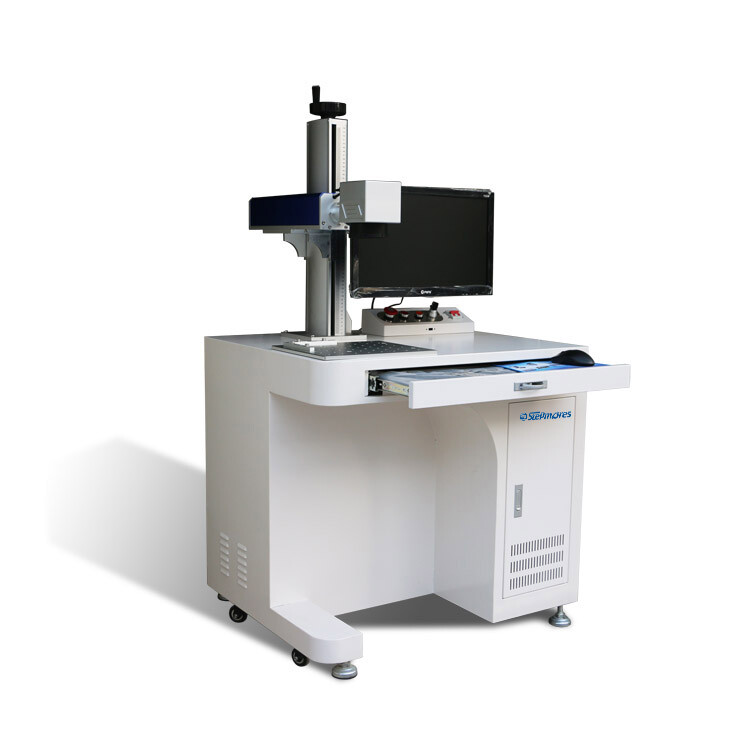

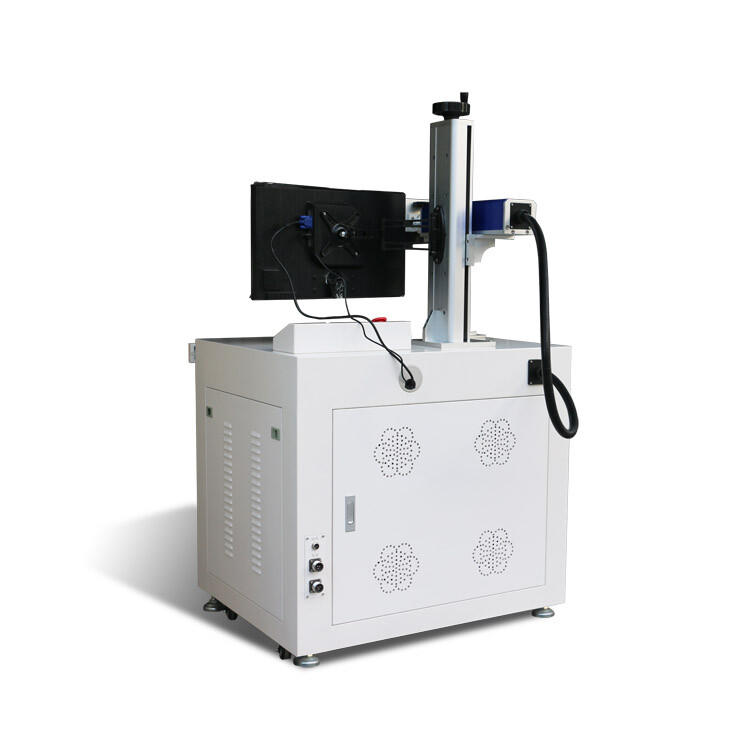

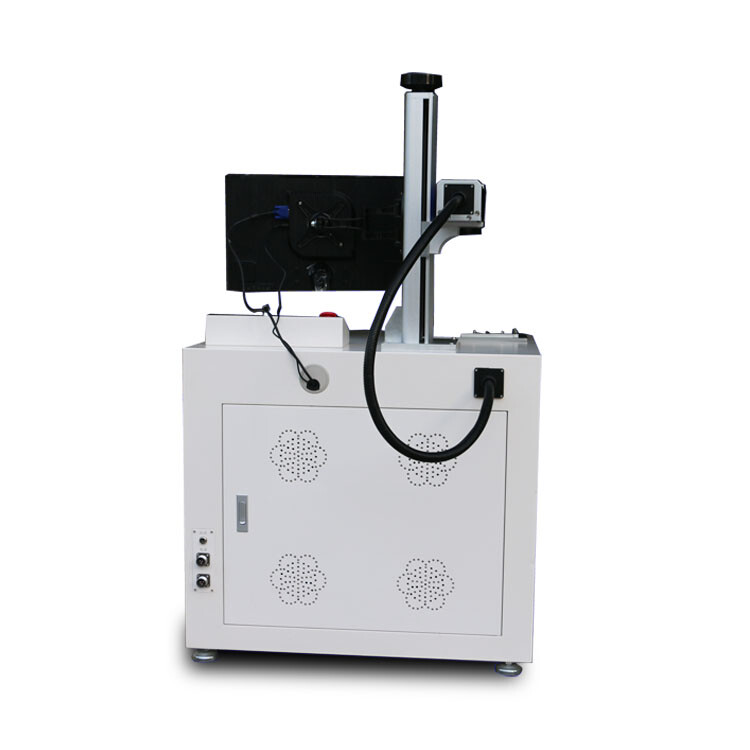

Fiber marking-Stand version

Wide marking range: suitable for multiple material marking, metal and a variety of metallic materials, high hardness alloys, ABS epoxy resin, ceramics, cardboard box, engineering plastic, etc., fast print speed, clear pattern.
Suitable for different metal surface metal markers such as gold, silver, stainless steel, brass, aluminum, steel, iron.
Applied in mechanical parts processing, instrument marking, hardware tools, daily necessities, automotive parts, electronic components and other industries.

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

laser power

20w/30w/50w/100w

laser source

Raycus/Max

cooling type

Air cooling

Marking Area

110x100mm  (150x150/175x175/200x200/300x300mm Option)

controller system

EZCAD

Supported design format

DXF, PLT, AI,CAD,cdr. and so on

Marking Depth

≤0.3mm

Engraving Speed

≤7000mm / s

Minimum Line Width

≤0.2mm

Control interface

USB

Power

AC220V±10%/50~60Hz

Applicable materials

Steel, iron, Aluminum, copper, jewerly, gold, silver, ring, plastic and so on

Packing size

880*870*1270mm

Gross Weight

110kg

laser power： 20w/30w/50w/100w

laser source： Raycus/Max

Marking Area： 110x100/150/150/175x175/200x200/300x300mm

controller board： Original BJJCZ

controller system： EZCAD

Supported design format： DXF, PLT, AI,CAD,cdr. and so on

cooling type： Air cooling

Marking Depth： ≤1.2mm

Engraving Speed： ≤12000mm/s

Minimum Line Width： 0.01mm

Minimum Character： 0.05mm

Power： AC220V±10%/50~60Hz

Applicable materials： steel, iron, aluminum, copper, jewerly, gold, silver, ring, plastic and so on

Packing size： 880*870*1270mm

Gross Weight ：110kg
