Oscillating knife

  • 6090 knife
  • 6090 knife

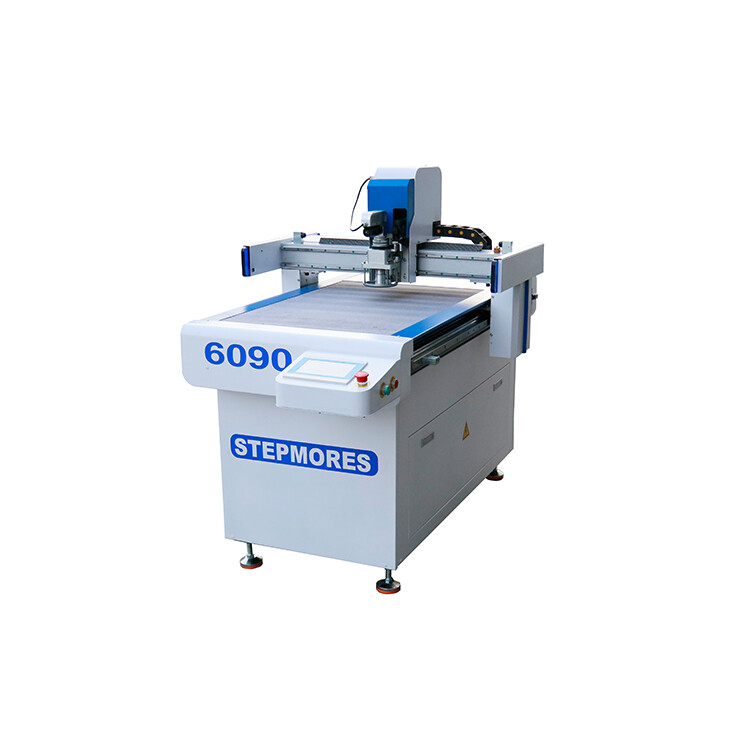

6090 knife


Features


★ High cutting speed . 8times faster than laser cutitng machine

★ Various material cutting capability

★ Touch screen controller , easy to opearate and learn

★ Non pollution and burnt edge

★ Multi-tools function can be choosed

★ Safty protection design meet high safety requirement





Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model6090121213251625
XYZ axis travel  600x900mm1200x1200mm1300x2500mm1600x2500mm
Max cutting thickness≤50mm
FunctionTangential  knife
Control systemRuida
Drive typeServo motor
Table typeBig thickness felt wtih vacuum absorption table
TransmitGear rack
Rail typeSquare rail
Cutting speed0-50mm/min（cutting speed depends on material thickness. Hardness ,density）
Applied materialsPU leather,PVC，rubber，cloth，carton，and other soft material
PowerAC220V / 380v ±10% / 50~60Hz
Support formatAI、PLT、DXF、CDR etc
Machine1560*1010*1420mm1860*1610*1420mm2960*1960*1420mm3330*1990*1420mm
packing size1700*1150*1620mm2000*1750*1620mm3100*2100*1620mm3470*2130*1620mm
Net/Gross weight300kg / 400kg500kg / 600kg900kg / 1000kg1200kg / 1300kg



1 Osscilation knife.png

Oscilation knife


13 Ruida touch screen controller.png

Ruida touch screen controller


11 Safty protection.png

Safty protection

11 Red cross positioning function.png

 Red cross positioning function


Leadshine servo motor.png

Servo motor


shimpo reducer.png

Reducer

linear rail.png

Square rail


gear rack.png

Oblique rack


12 Vacuum table.png

Vacuum table


12 Big thickness felt.png

Big thickness felt


12 vacuum pump.png

Vacuum pump







3 V cut.png

V cut


3 Creasing wheel.png

Creasing wheel


2 Pneumatic tool.png

Pneumatic tool


2 Servo motor drive knife tool.png

Servo motor drive knife tool


5 Electric v cut knife.png

Electric v cut knife


4 Driven rotary tool.png

Driven rotary tool


6 drag knife 2.png

Drag knife


6 half cutter.png

Kiss cut tool


10 Double tool unit.png

Double heads


7 Punching tool.png

Punching tool


7 Pen.png

Drawing pen


7 Spindle motor.png

Spindle motor


8 CCD camera.png

Camera CCD function


8 Big camera visual system.png

Big camera visual system


8 Projector.png

Projector


12 Auto feeding function.png

Auto feeding


12 Auto feeding device.png

Auto feeding device
