Mini size

  • Light version
  • Light version

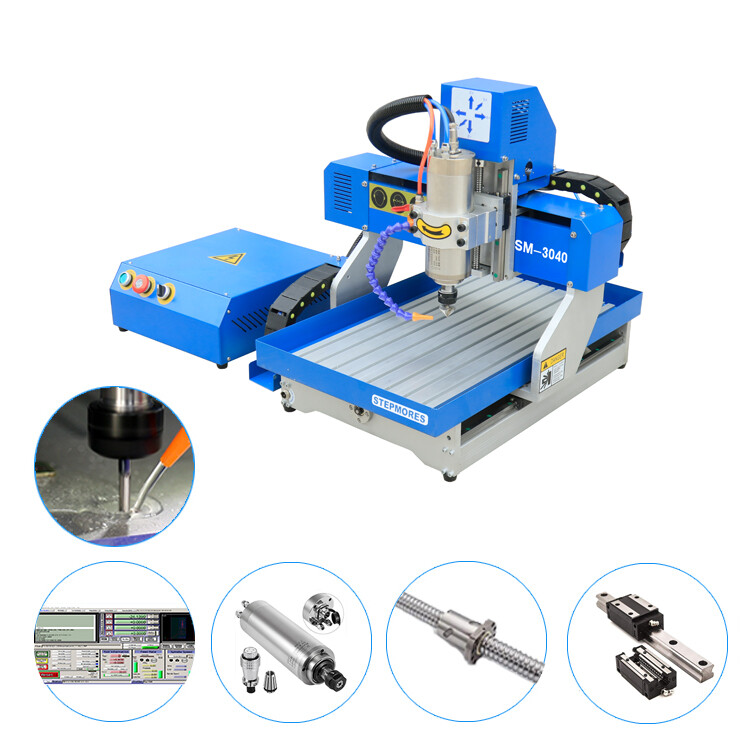

Light version

Features


★ Professional mini cnc

★ Square linear rails confirm higher precision

★ Higher Feeding height

★ Big thickness table

★ Professional spindle motor

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download


Model304060406090
XYZ axis travel  300x400x120mm400x600x120mm600x900x140mm
Feeding height120mm120mm150mm
Table size320x580mm450x800mm600x1200mm
Spindle power1.5kw water cooling(0-24000RPM)
Rail typeSquare rail
Control system3Axis Mach3 (USB port）
Drive typeStepper motor
TransmitBallscrew
Table typeAluminum profile T slot clamping
Max travel speed5000mm/min
Working precision0.05mm
PowerAC220V±10% / 50~60Hz
Compatible SoftwareType3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
Command codeG code
Machine680*58*480m904*720*600mm1150*870*480m
packing size820*660*550m1080*840*750mm1290*1010*630m
Net/Gross weight55kg /70kg75kg / 110kg95kg / 130kg



Water cooling spindle.png

1.5KW Water cooling spindle


Fuling inverter.png

Professional inveter



Mach3 controller


Tool sensor.png

Tool sensor


stepper motor.png

Stepper motor and driver


linear rail.png

Square rails



High precision ballscrew


3040 Aluminum table.png

Big thickness aluminium profile table




Water cooling spindle.png

2.2kw water cooling spindle

Air cooling spindle round versoin.png

Air cooling spindle 1.5kw/2.2kw

MDR controller.png

MDR controller



DSP controller


红壳混伺 加框.png

Easy servo motor

flood cooling.png

Flood tool cooling system

rotary device.png

Rotary device

centralizer 1.png

Centralizer





3040 Machine size.jpg

6040 Machine size.jpg

6090 Machine size.jpg

Question: Can this machine work on metal ?

Answer: Yes, but need to add flood cooling system or mist cooling system.


Question: Can I change to be more power spindle in the future ?

Answer: Yes, if you choose 1.5kw spindle. You can change to be 2.2kw spindle.


Question: Can I add rotary device in the future?

Answer: If you want to use rotary device instead of x or y. its ok. But if want to use 4axis .you need to replace controller to be 4axis . and add 4th driver. So it will be a little trouble. But we can offer our support.

1 . Standard with options :  Mini CNC Router 3040 6040 6090.pdf
