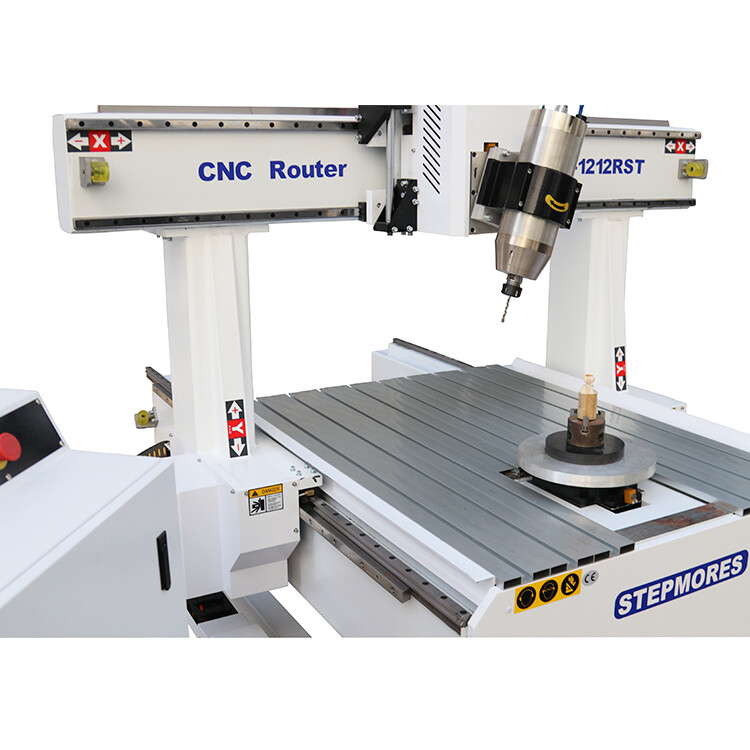

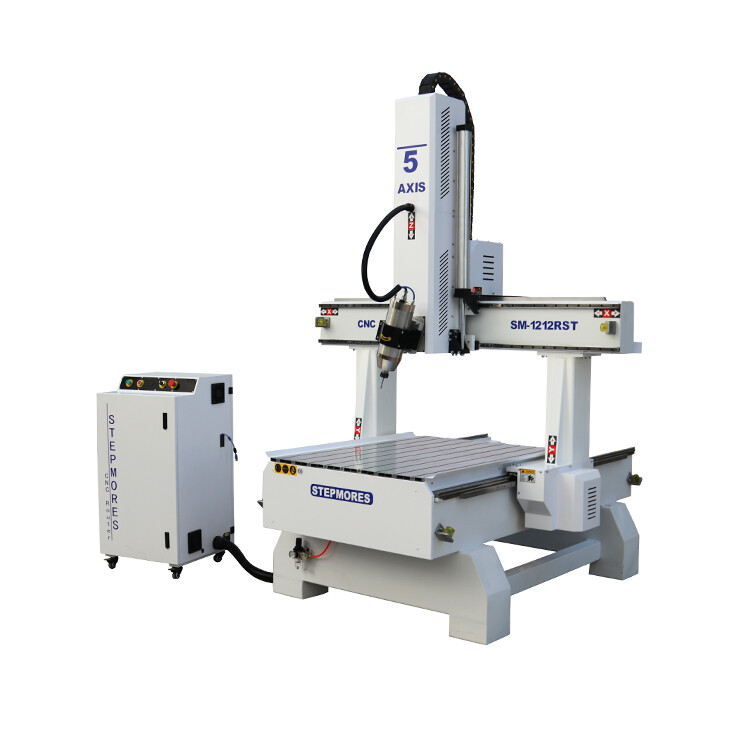

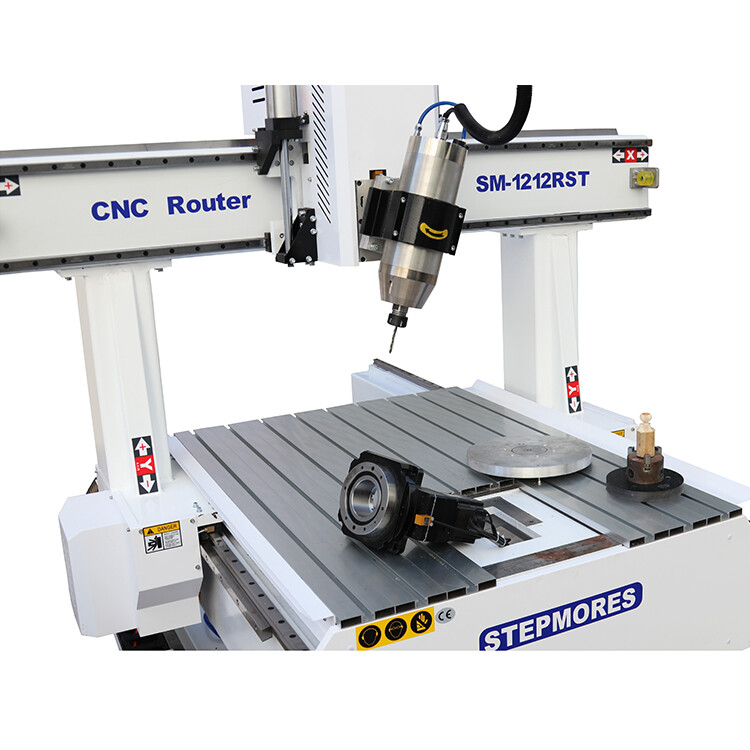

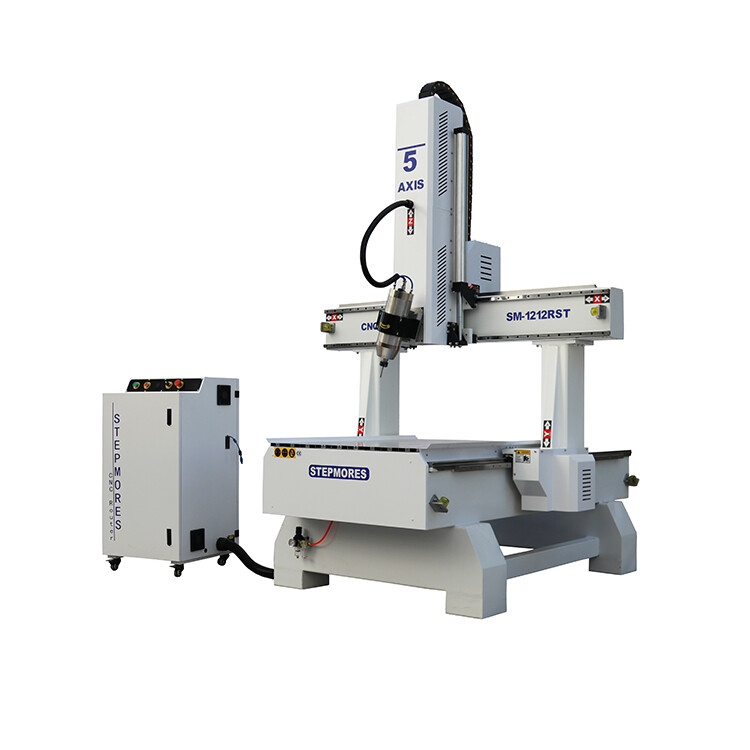

1212RST

Features

★ 5axis controller with RTCP function

★ Servo motor

★ Rotary spindle + rotary table design

★ 3kw water cooling spindle

★ Square linear rails confirm higher precision

★ Dust collector

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

MODEL

1212RST

XYZ axis travel distance

1200x1200x500mm

Feeding height

500mm

Table size

1200*1200mm

Rotary spindle range

±90°

Rotary table size

300x300mm

Spindle power

3w water cooling (0-24000RPM)  （Air cooling spindle option）

Control system

5axis controller with RTCP function

Drive type

Servo  motor

Table type

Aluminum profile T slot

Dust extraction

3kw double bags

Rail type

linear rails

Transmit

XY gear rack and Z ballscrew

Max travel speed

40000mm/min

Working precision

0.05mm

Power

AC380V±10% / 50~60Hz

Compatible Software

Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc

Command code

G code

Machine / packing size

2030*2160*2850mm/2170*2300*2350mm

Net / Gross weight

1500kg / 1800kg
