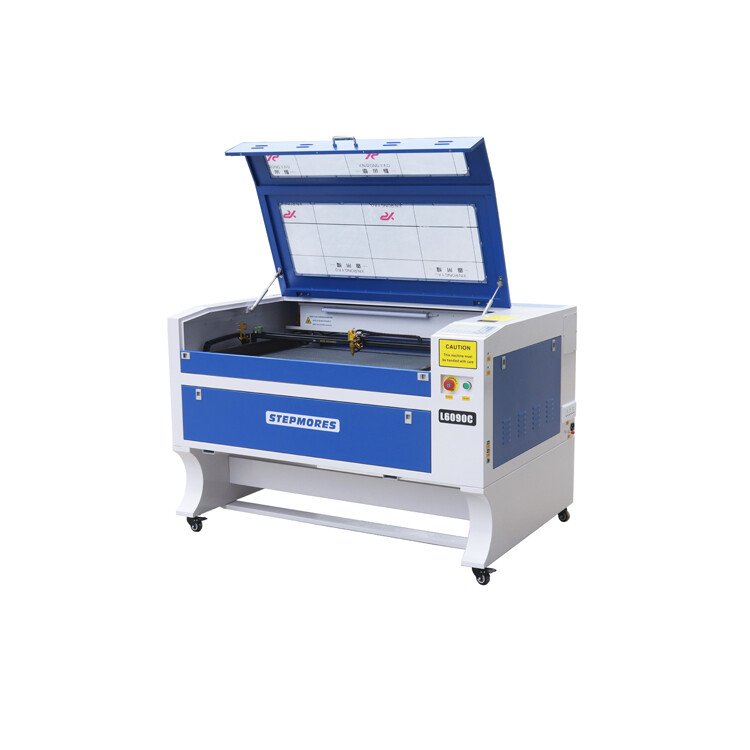

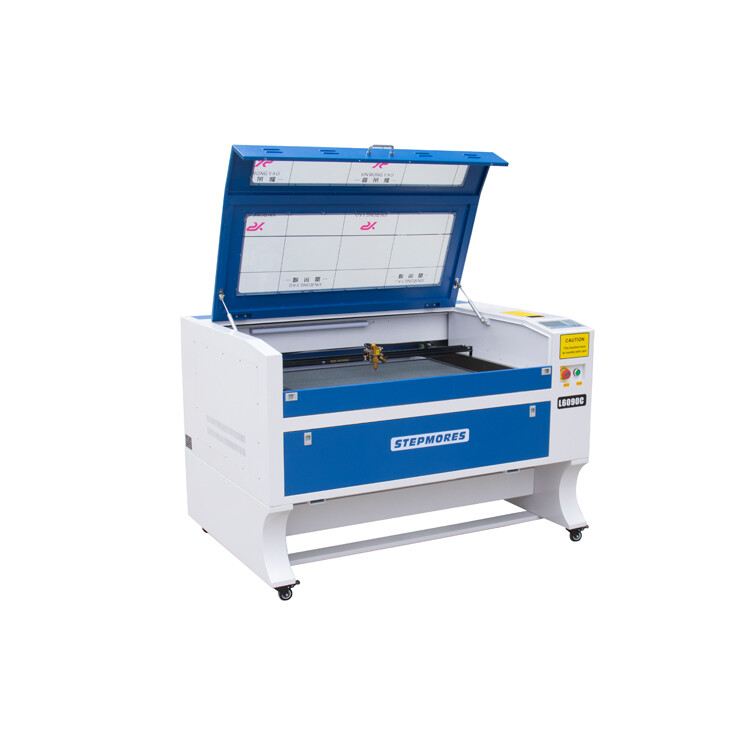

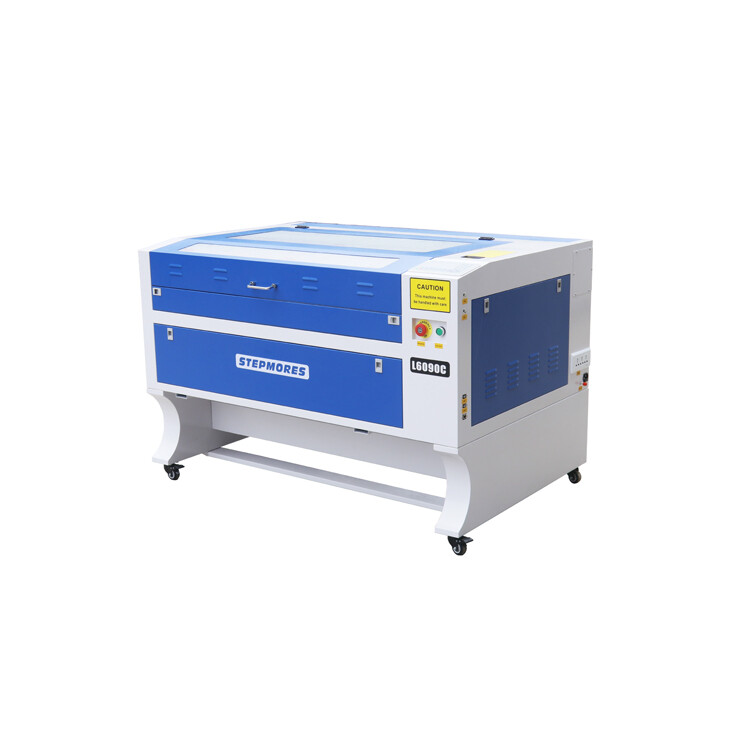

6090c

Applicable materials:

Leather, cloth, wool, acrylic, wooden board, plastic, rubber, ceramic, crystal, jade, bamboo products, marble, epoxy resin, etc. non-metallic articles.

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

ModelL6090C
Cutting Area900mm*600mm
Laser TypeCO2
Laser tube brandRECI
Cooling Modewater cooling
Control SystemRuida 6445
Drive typeStepper motor
Rail typelinear rails
Max Speed0-1000mm / s
Maximum letter1.5 x 1.5mm
Table typeHoneycomb
ChillerCW3000
Format SupportedAI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Power220V± 10% 50Hz / 110V ± 10% 60Hz
Machine size1430*940*940mm
packing size1870*1040*750mm
Net/Gross weight150kg

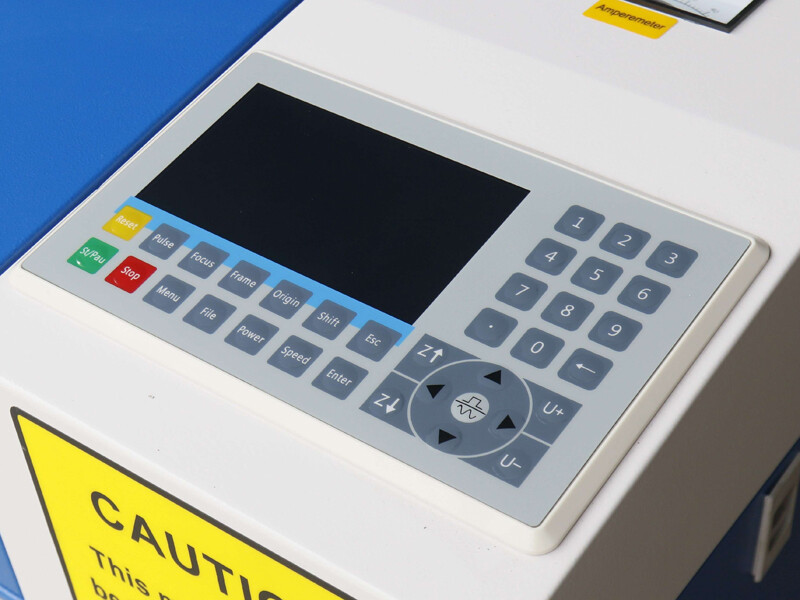

Ruida controller.jpg

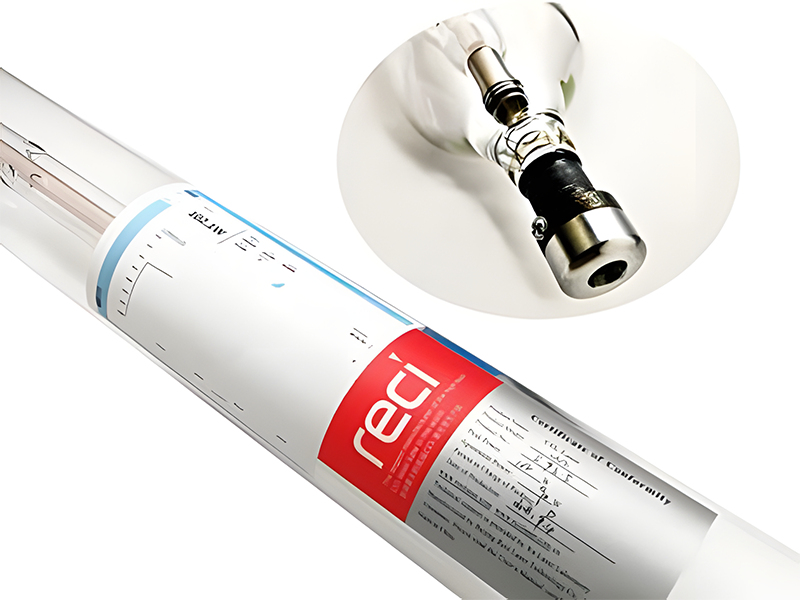

Reci laser tube.png

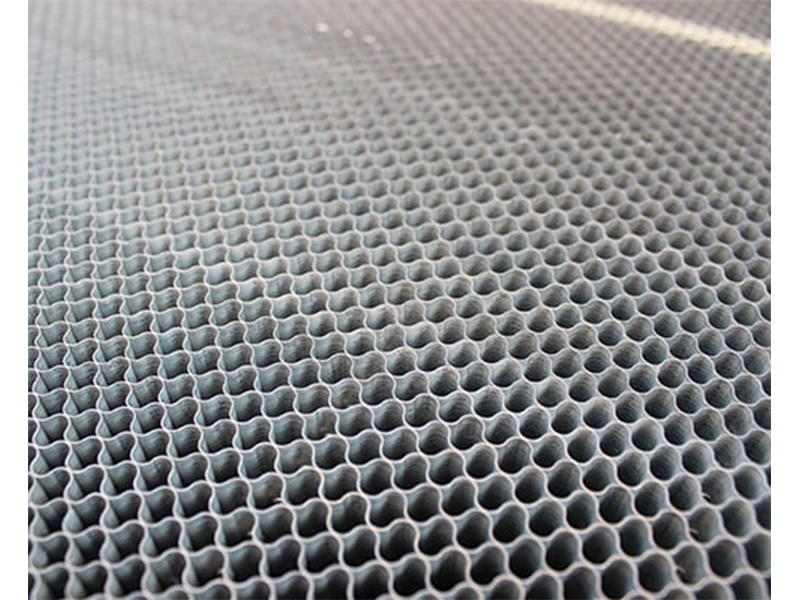

Honeycomb table.png

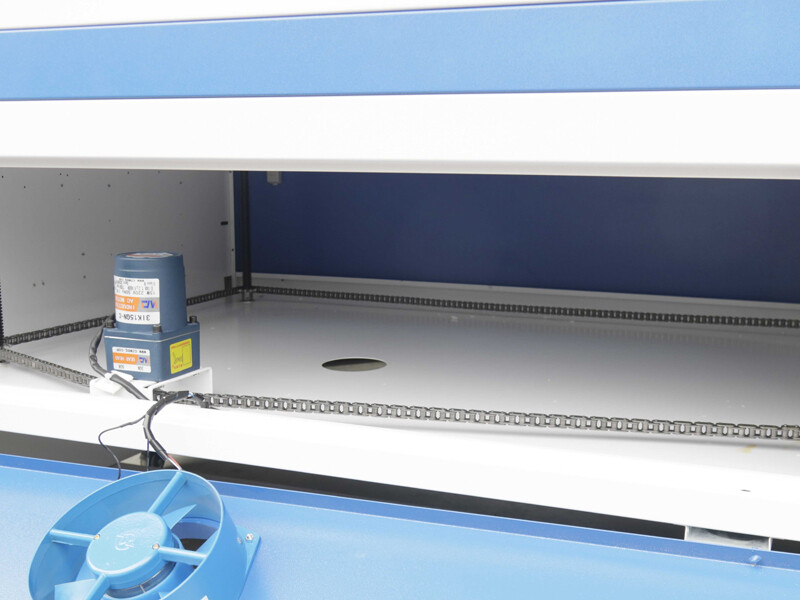

Electric updown table.jpg

Ruida controllerReci laser tubeHoneycomb tableElectric updown table

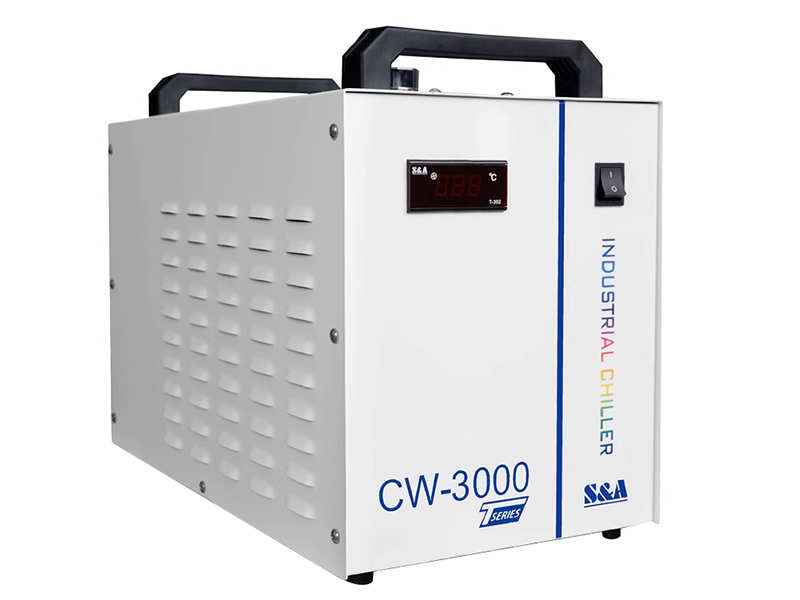

CW3000 chiller.png

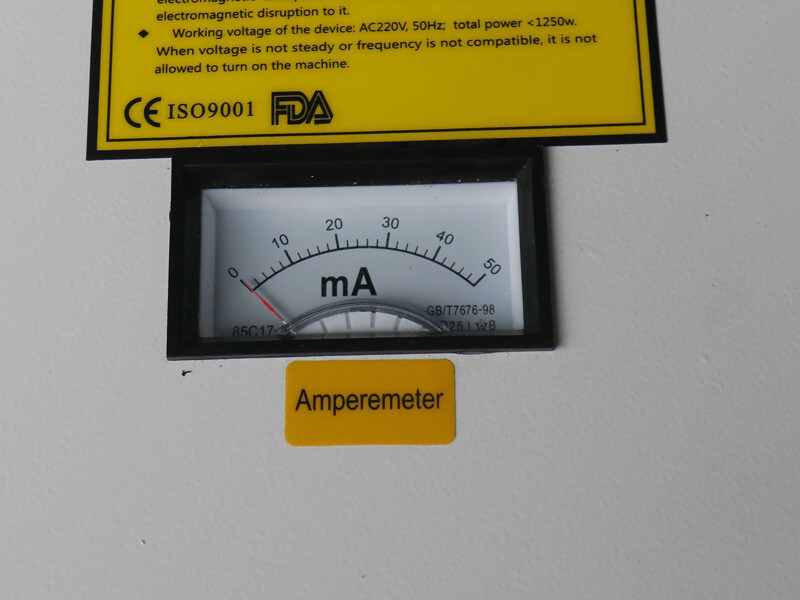

Ampere meter.jpg

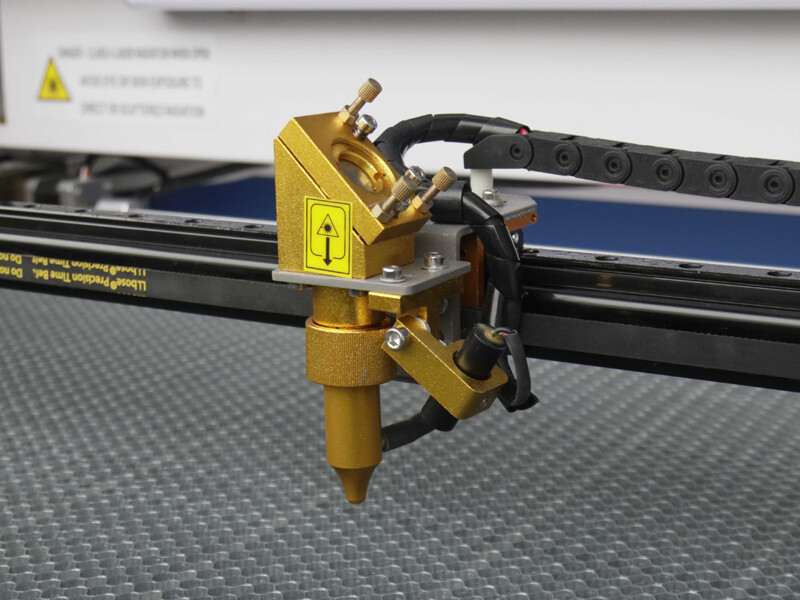

Laser cutting head.jpg

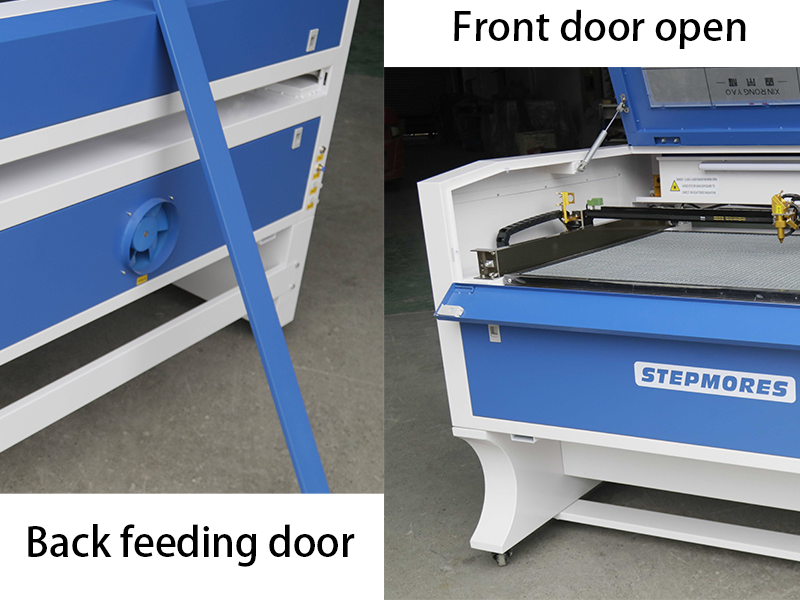

Long material feeding doorsCW3000 chillerAmpere meterLaser cutting head

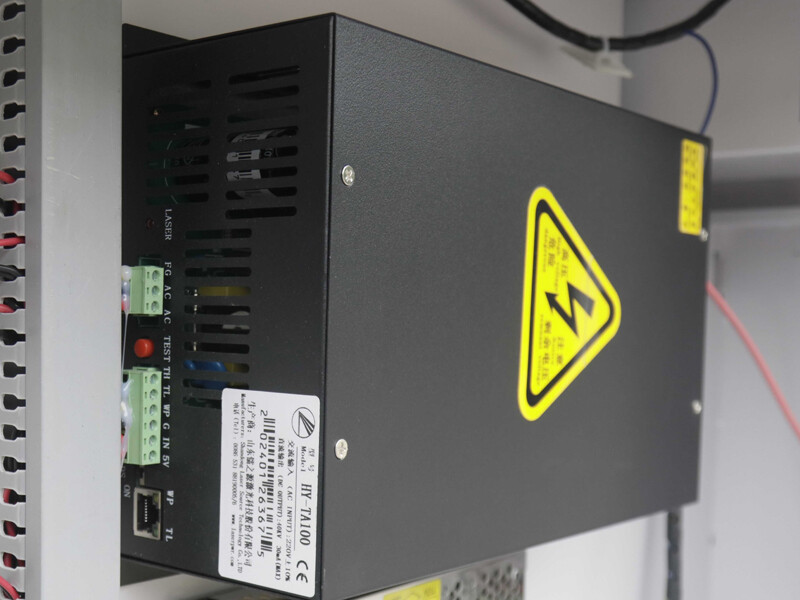

laser power supply.jpg

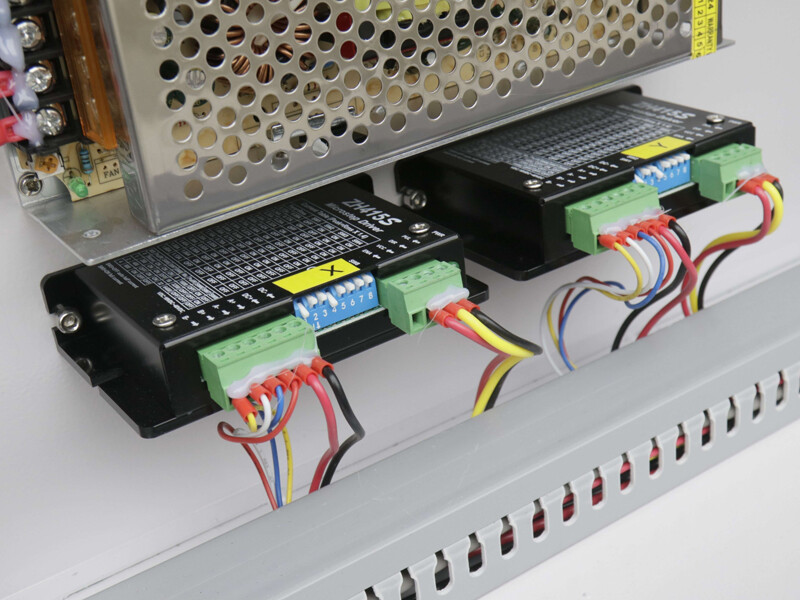

Stepper driver.jpg

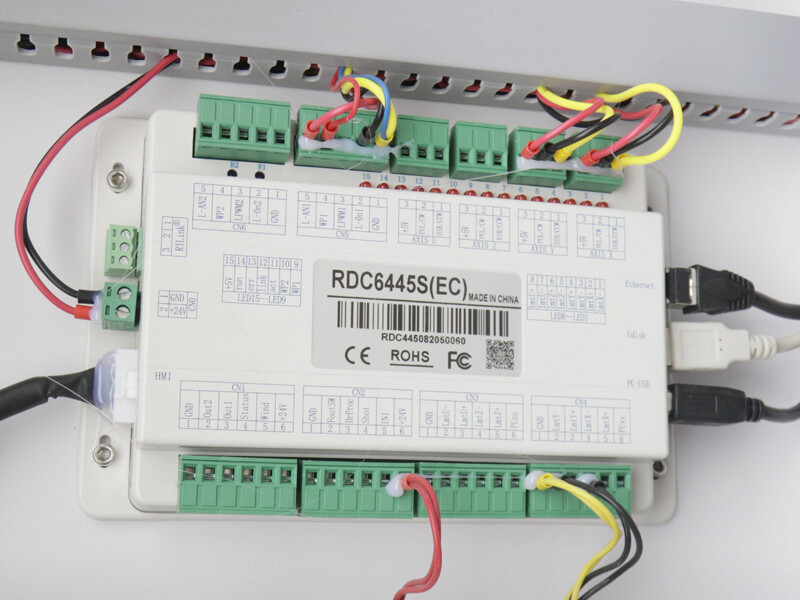

RDC6445 control board.jpg


Laser power supplyStepper driverRDC6445 control board
