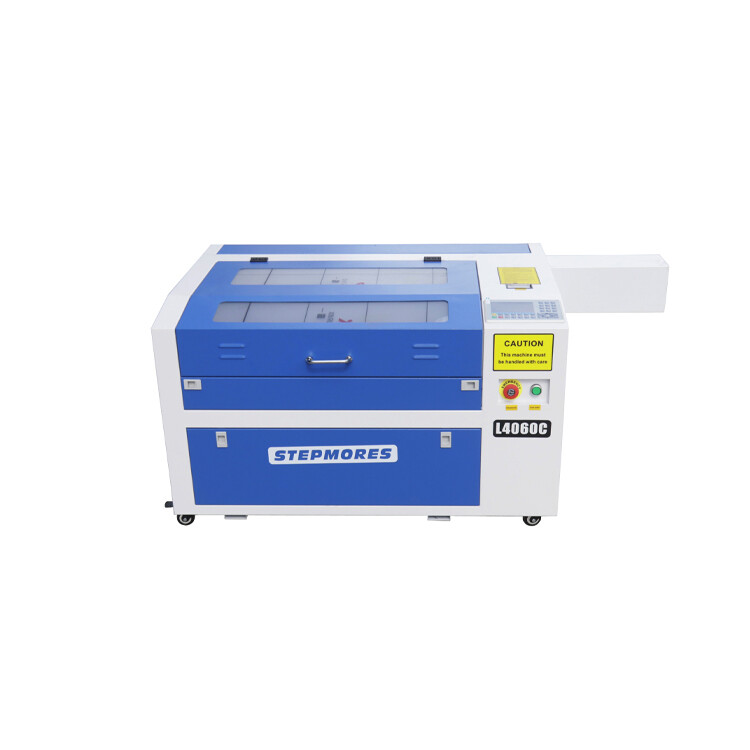

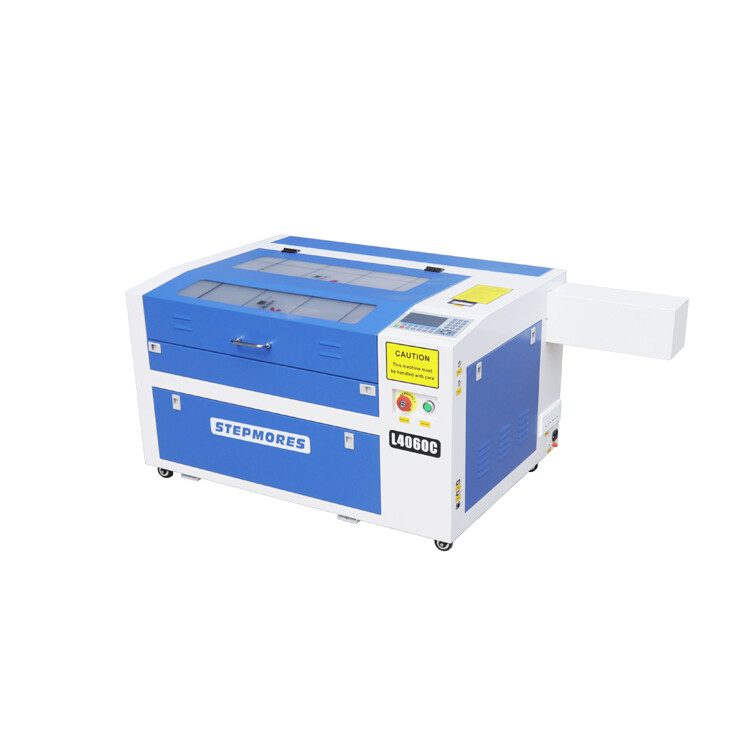

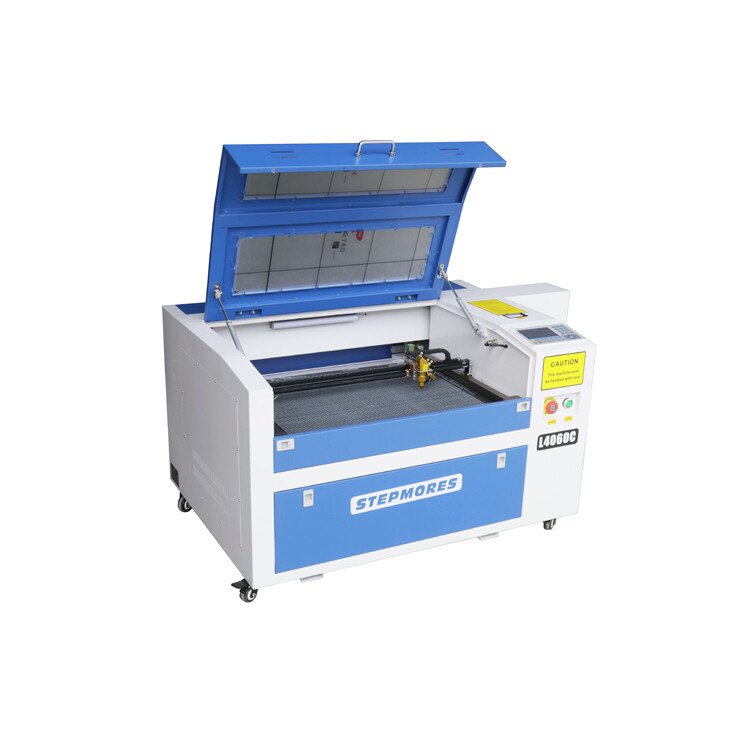

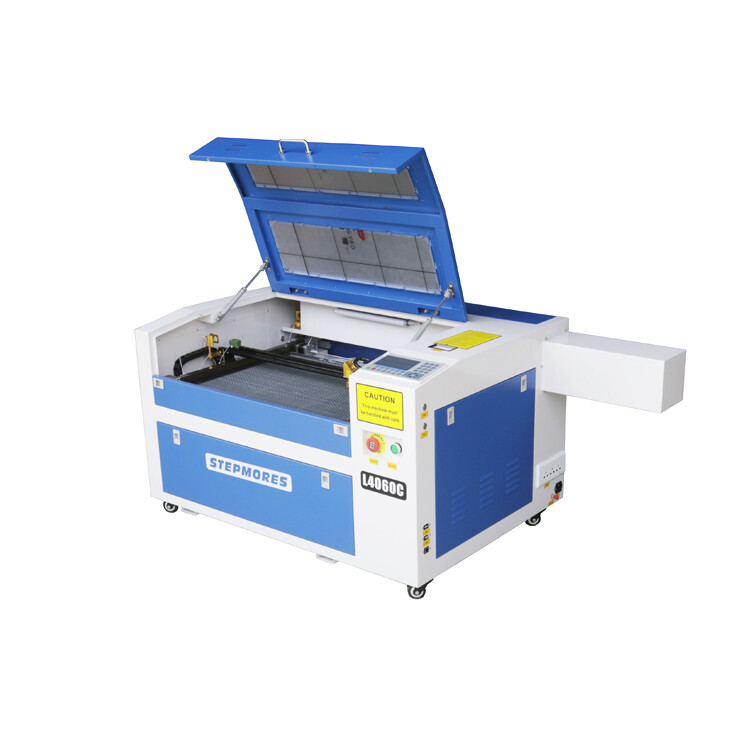

4060c

Applicable materials:

Leather, cloth, wool, acrylic, wooden board, plastic, rubber, ceramic, crystal, jade, bamboo products, marble, epoxy resin, etc. non-metallic articles.

Get your shareable link

Parameter
Details
Option
Video
Dimension
FAQ
Download

ModelL4060C
Cutting Area600mm*400mm
Laser TypeCO2
Laser tube power60w
Cooling ModeWater cooling
Control SystemRuida 6445
Drive typeStepper motor
Rail typelinear rails
Cutting Speed0-1000mm / s
Table typeHoneycomb
ChillerWater pumup
Format SupportedAI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Machine size1415*740*640mm
packing size1510*830*820mm
Net/Gross weight100kg

Ruida controller.jpg

Reci laser tube.png

Honeycomb table.png

Electric updown table.jpg

Ruida controllerReci laser tubeHoneycomb tableElectric updown table


CW3000 chiller.png

Ampere meter.jpg

Laser cutting head.jpg

Long material feeding doorsCW3000 chillerAmpere meterLaser cutting head


laser power supply.jpg

Stepper driver.jpg

RDC6445 control board.jpg


Laser power supplyStepper driverRDC6445 control board
