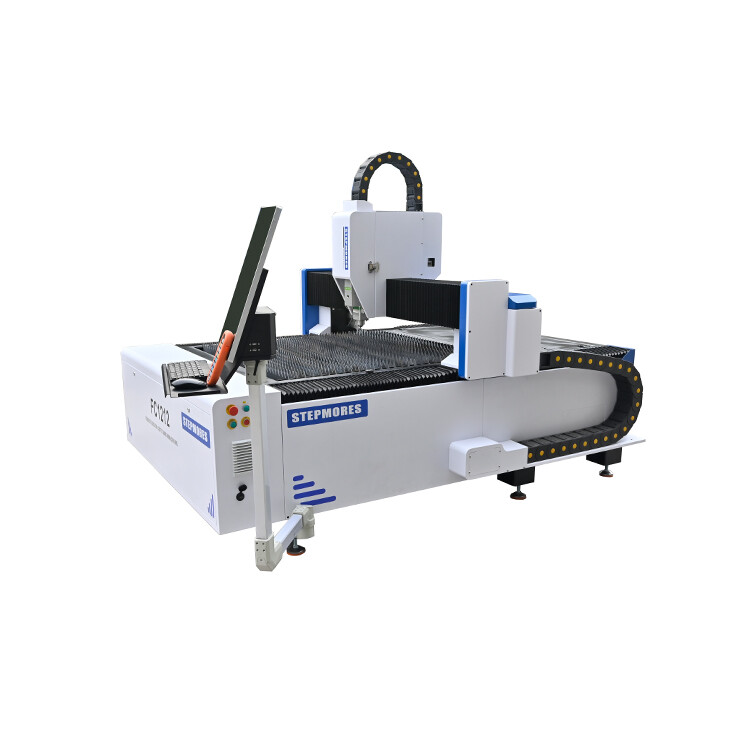

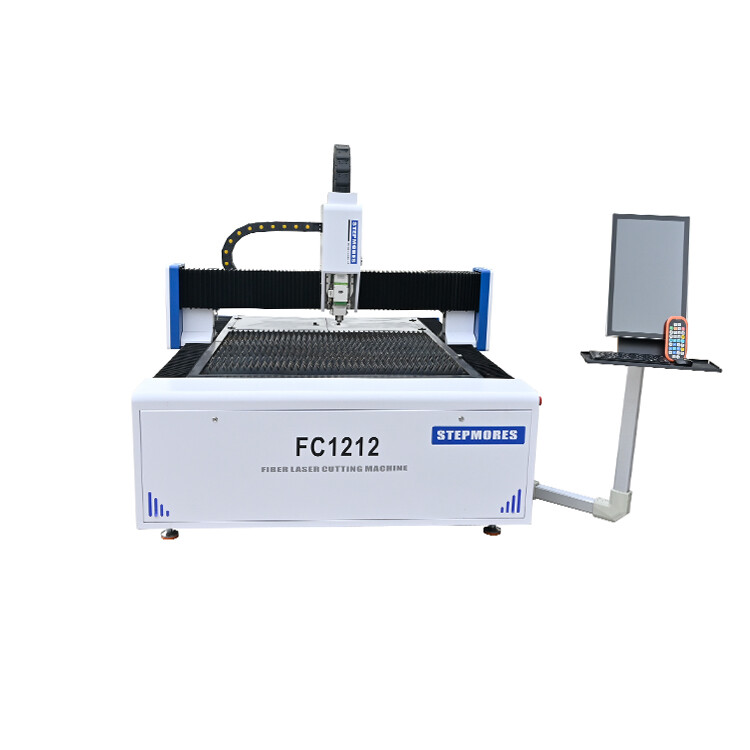

1212F


Features


★ 1500W-6000W Option

★ 1200x1200mm cutting area

★ Raytool cutting head

★ Fasting cutting speed

★ Cheap price with good quality


Get your shareable link

Parameter
Details
Option
Video

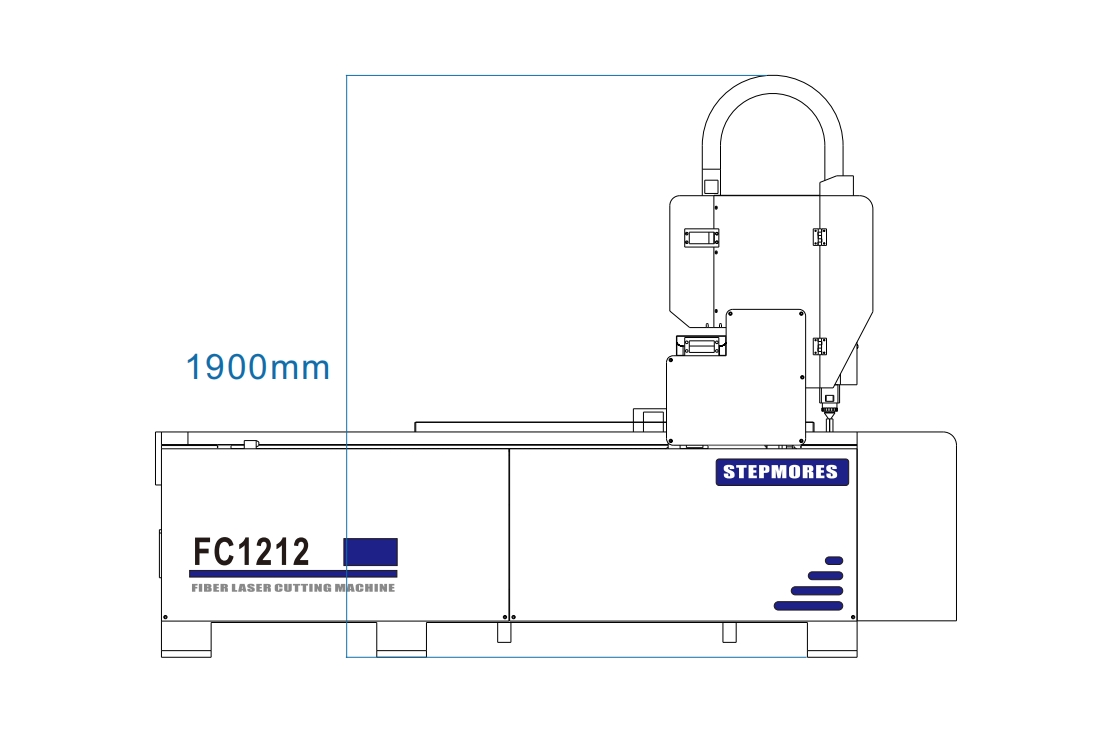

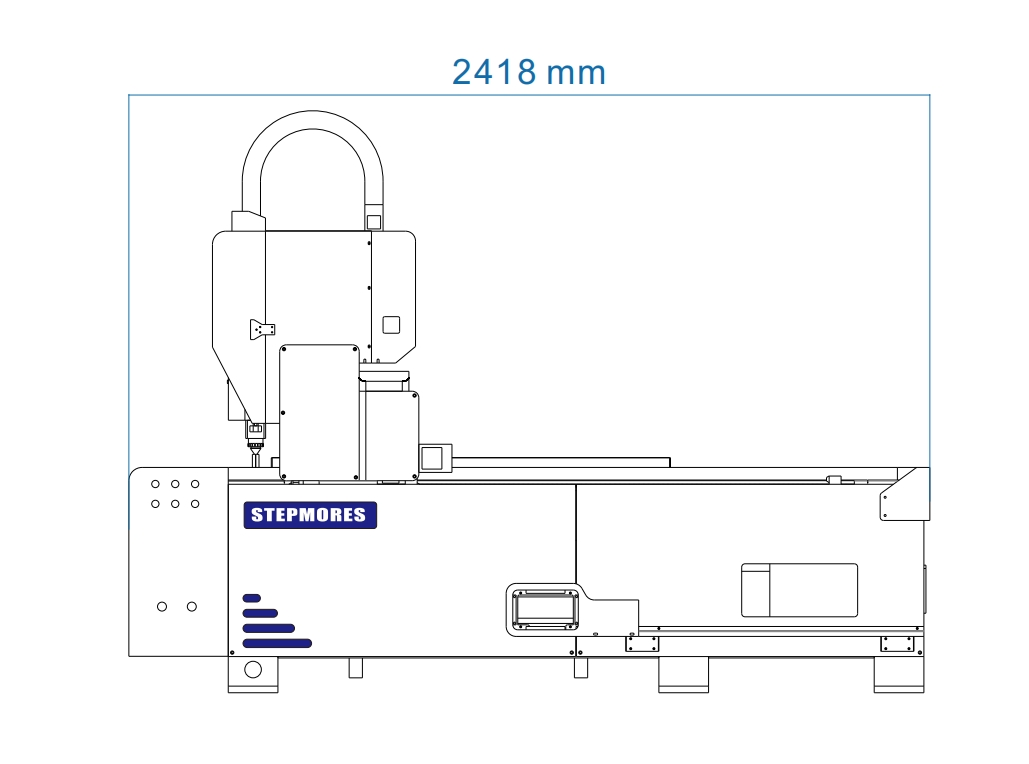

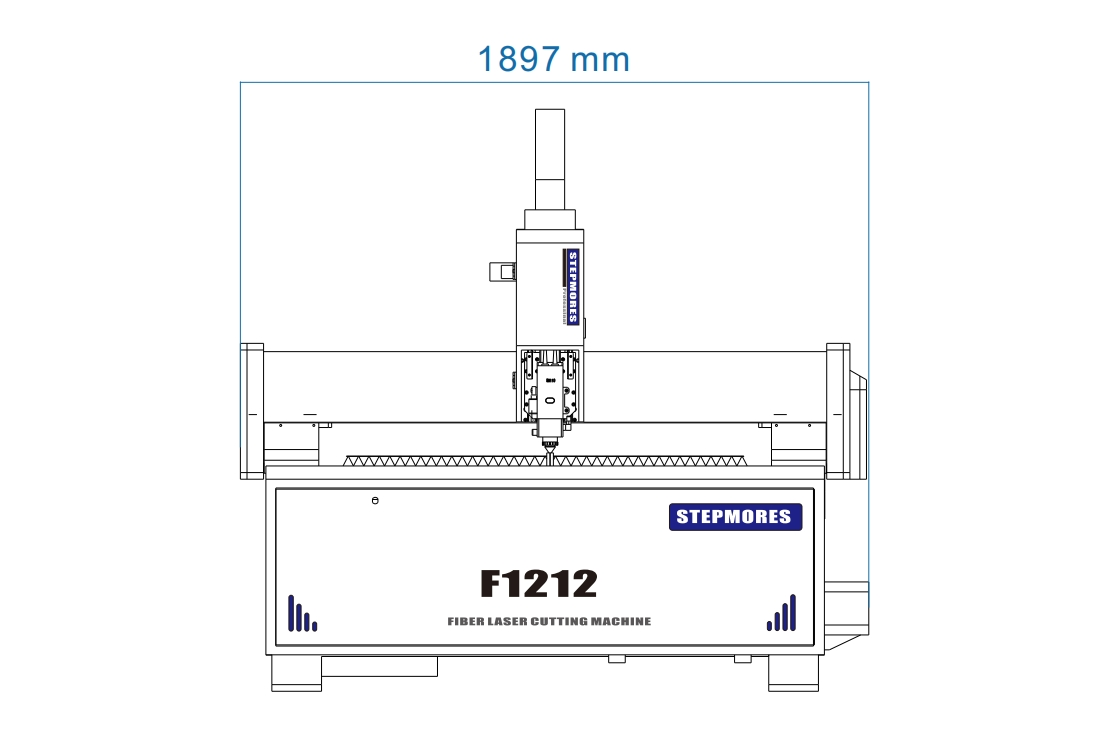

Dimension
FAQ
Download


ModelF1212
Working area1200X1200MM
Max. Output Power1500w / 2000W / 3000W / 6000W
Fiber Laser Source BrandRECI / Raycus / MAX
Laser Head BrandRaytools
ControllerRaytools / Cypcut / Weihong/Au3tech
MotorServo motor
RailsLinear rail
ChillerS＆A/Hanli
Application materialCarbon / Stainless Steel / Aluminum
Graphic Format SupportedAI, BMP, Dst, DXF, PLT, Dwg, LAS, DXP
Working Voltage220V/380v
Machine size2418*1897*1900mm
Packing size2560*2040*2090mm
Gross weight1200KG



1212低配光纤 750W-W.png

1212低配光纤 750W-L.png

1212低配光纤 750W-H.png

1212低配光纤 750W-W.png

1212低配光纤 750W-L.png

1212低配光纤 750W-H.png
